 Tecoflex® Aliphatic polyether TPU available in a variety of durometer, color, and radiopacifier formulations. Tecoflex polymers are easy to process and resists yellowing by aging. |
|
| Tecothane® An aromatic polyether TPU in a variety of durometer, color, radiopacifier formulations. Tecothane resins offer improved solvent resistance and biostability. |
|
| Carbothane® Aliphatic polycarbonate TPU available in a variety of durometer, color, and radiopacifier formulations. Carbothane is easy to process, offers excellent oxidative stability, and provides long term biostability. |
|
| Tecophilic® Aliphatic polyether TPU formulated to absorb from 20 to 1000% by weight of the dry resin, while maintaining much of its properties. Solution of extrusion grades available. |
|
| Isoplast® Rigid TPU available in impact modified, clear, and glass filled grades. Isoplast is designed to rigid polymer requirements. |
|
| Pellethane® and Estane® Aromatic TPUs in polyether available in polyether and polyester forms. Available in natural color and wide range of durometers. |
|
| All Thermedics™ Polymers Products are specifically formulated for excellent biostability, biocompatibility, flexural endurance, high strength and the processing versatility demanded by the medical and healthcare industry. |
|
| Tecoflex®-Aliphatic Polyether TPUs |
|
| Priduct |
Hardness |
Flex Modulus |
Character |
| EG-80A |
72A |
1,000 |
Clear |
| EG-85A |
77A |
2,300 |
Clear |
| EG-93A |
87A |
3,200 |
Clear |
| EG-100A |
94A |
1,000 |
Clear |
| EG-60D |
51D |
13,000 |
Clear |
| EG-65D |
60D |
37,000 |
Clear |
| EG-68D |
63D |
46,000 |
Clear |
| EG-72D |
67D |
92,000 |
Clear |
| EG-80A-B20/B40 |
73A/78A |
1,200/1,500 |
Radiopaque |
| EG-85A-B20/B40 |
83A/86A |
2,700/3,700 |
Radiopaque |
| EG-93A-B20/B40 |
90A/95A |
5,000/4,700 |
Radiopaque |
| EG-100A-B20/B40 |
93A/98A |
17,000/14,000 |
Radiopaque |
| EG-60D-B20/B40 |
55D/65D |
27,000/27,000 |
Radiopaque |
| EG-65D-B20/B40 |
63D/78D |
82,000/97,000 |
Radiopaque |
| EG-68D-B20 |
73D |
76,600 |
Radiopaque |
| EG-72D-B20/B40 |
75D/82D |
125,000/179,000 |
Radiopaque |
|
|
| Tecophilic® - Aliphatic Polyether TPUs |
|
| Priduct |
Hardness |
Flex Modulus |
Ultimate Elongation % Dry/Wet |
H20 Absorption |
| HP-93A-100 |
83A |
2,900 |
1040/620 |
100% |
| HP-60D-20 |
43D |
4,300 |
430/390 |
20% |
| HP-60D-35 |
42D |
4,000 |
450/390 |
35% |
| HP-60D-60 |
41D |
4,000 |
500/300 |
60% |
| SP-80A-150 |
70A |
|
600/1000 |
150% |
| SP-93A-100 |
83A |
2,900 |
1040/620 |
100% |
| SP-60A-60 |
41D |
4,000 |
500/300 |
60% |
| TG-500 |
60D dry |
|
100/200 |
500% |
| TG-2000 |
60D dry |
|
100/weak gel |
900% |
|
|
| *Flexural Modulus(psi):ASTM D790;Ult. Elongation(%):ASTM D412;H20 Absorption:Thermedics Method |
|
| Carbothane®- Aliphatic Polycarbonate TPUs |
|
| Priduct |
Hardness |
Flex Modulus |
Character |
| PC-3575A |
73A |
620 |
Clear |
| PC-3585A |
84A |
1,500 |
Clear |
| PC-3595A |
95A |
4,500 |
Clear |
| PC-3555D |
60D |
24,000 |
Clear |
| PC-3572D |
71D |
92,000 |
Clear |
| PC-3575A-B20 |
73A |
860 |
Radiopaque |
| PC-3585A-B20 |
89A |
1,700 |
Radiopaque |
| PC-3595A-B20 |
96A |
8,600 |
Radiopaque |
| PC-3555D-B20 |
60D |
25,000 |
Radiopaque |
| PC-3572D-B20 |
75D |
141,000 |
Radiopaque |
|
|
| *Flexural Modulus(psi):ASTM D790 |
|
| Pellethane®- Aliphatic Polyether TPUs |
|
| Priduct |
Hardness |
Flex Modulus |
App Type |
Approval |
| 2363-80A |
81A |
|
Injection |
USP Class VI |
| 2363-80AE |
85A |
|
Extrusion |
USP Class VI |
| 2363-90A |
90A |
11,000 |
Injection |
USP Class VI |
| 2363-90AE |
90A |
10,000 |
Extrusion |
USP Class VI |
| 2363-55D |
55D |
25,000 |
Injection |
USP Class VI |
| 2363-55DE |
53D |
22,000 |
Extrusion |
USP Class VI |
| 2363-65D |
62D |
32,000 |
Injection |
USP Class VI |
| 2363-75D |
76D |
190,000 |
Injection |
USP Class VI |
|
|
| *Flexural Modulus (psi):ASTM D790 |
|
| Tecothane®- Aromatic Polyether TPUs |
|
| Priduct |
Hardness |
Flex Modulus |
Character |
| TT-1074A |
75A |
1,300 |
Clear |
| TT-1085A |
85A |
3,000 |
Clear |
| TT-1095A |
94A |
8,000 |
Clear |
| TT-1055D |
54D |
18,000 |
Clear |
| TT-1065D |
64D |
26,000 |
Clear |
| TT-1069D |
69D |
44,000 |
Clear |
| TT-1072D |
74D |
73,000 |
Clear |
| TT-1075D-M |
75D |
180,000 |
Clear |
| TT-2074A-B20/B40 |
77A/83A |
1,800/2,800 |
Radiopaque |
| TT-2085A-B20/B40 |
87A/88A |
3,500/3,800 |
Radiopaque |
| TT-2095A-B20/B40 |
97A/97A |
8,500/12,000 |
Radiopaque |
| TT-2055D-B20/B40 |
55D/64D |
19,000/24,000 |
Radiopaque |
| TT-2065D-B20/B40 |
67D/75D |
31,000/58,000 |
Radiopaque |
| TT-2069D-B20 |
70D |
50,000 |
Radiopaque |
| TT-2072D-B20 |
75D |
80,000 |
Radiopaque |
| TT-2075D-B20/B40 |
77D/84D |
190,000/421,000 |
Radiopaque |
|
|
| *Flexural Modulus(psi):ASTM D790 |
|
| Isoplast® - Rigid TPU with Chemical & Impact Resistance |
|
| Priduct |
Hardness |
Flex Modulus |
Character |
Approval |
| 2510 |
116R |
260,000 |
Impact Modified |
USP Class VI |
| 2530 |
121R |
330,000 |
Transparent |
USP Class VI |
| 2531 |
123R |
340,000 |
Transparent |
USP Class VI |
| 2540 |
|
1,500,000 |
LGF |
USP Class VI |
| 2560 |
|
2,200,000 |
LGF |
USP Class VI |
|
|
| *Flexural Modulus(psi):ASTM D790 |
|
| Tecoplast® - Rigid TPU with Chemical & Impact Resistance |
|
| Priduct |
Hardness |
Flex Modulus |
Character |
| OP-770 |
82D |
250,000 |
Opaque |
| TP-470 |
82D |
300,000 |
Transparent |
| OP-570 |
84D |
320,000 |
Opaque |
|
|
| *Flexural Modulus(psi):ASTM D790 |
|
| Backed by the resources of a global organization, Lubrizol is uniquely positioned to supply custom medical resin and tubing products. Our tubing production facility is designed to meet a variety of specific needs, with all tubing meeting strict quality control measures at exact dimensions, durometers and strength tolerances. |
|
| In addition, we can extrude tubing with the most demanding specifications, including: |
-Extremely small diameters or complex lumen configurations
-Clear, pigmented or up to 60 percent rediopaque-filled tubing
-Co-extruded tubing with radiopaque striping |
|

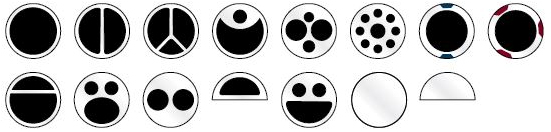

| Cross sections below show a variety of lumen configurations available. |
 |
| Custom extruded tubing is available in many durometers and radiopaque grades of our thermoplastic polyurethanes. |
